HTTP

POSTs records to any HTTP service, batched as NDJSON, a JSON array or text lines, or one record per request.

Example

Posts each batch as a JSON array, and reads the DD-API-KEY header's value from the worker-host variable INTAKE_API_KEY.

{
  "id": "intake",
  "type": "http",
  "url": "https://intake.example.com/v1/logs",
  "body": "jsonArray",
  "headers": {
    "X-Source": "smeltr"
  },
  "credentials": {
    "DD-API-KEY": "INTAKE_API_KEY"
  }
}
The HTTP form on the Destinations page: id intake, its URL, batched requests as a JSON array, and the header X-Source.
Open complete screenshot ↗

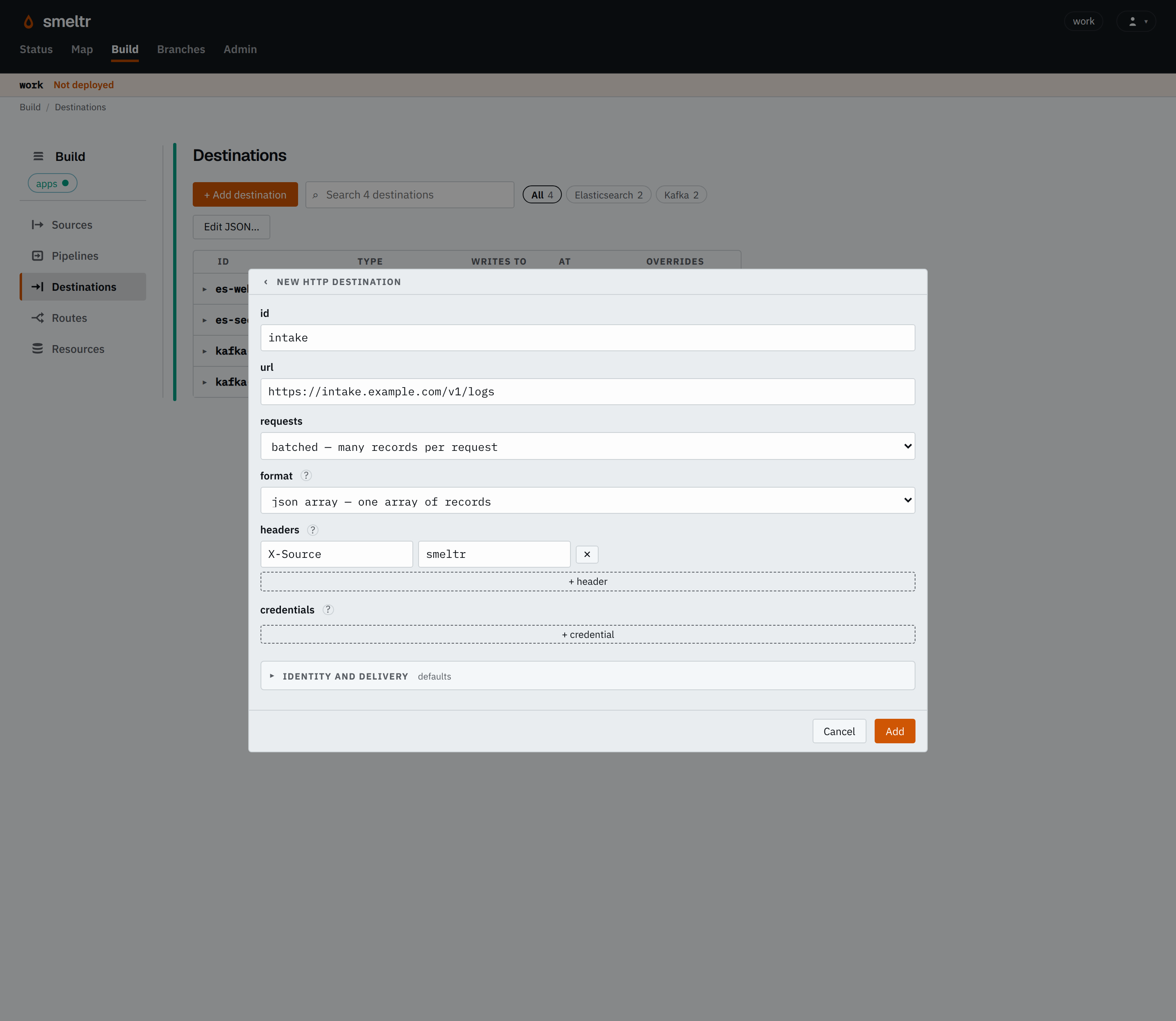

The HTTP form on the Destinations page: id intake, its URL, batched requests as a JSON array, and the header X-Source.
Open complete screenshot ↗
The Destinations page's HTTP form. Choose batched or one record per request, then the format. Credentials name a secret; Advanced holds the rest.

Before you start

  • Find the URL the service takes records at, and the body it expects.
  • Allow workers to reach the service.
  • Put each secret header's whole value in a credential. For Authorization, the credential holds Bearer <token>, prefix included.

Settings

It also takes the settings every destination takes.

url string required

The whole address the destination POSTs each request to, http:// or https://. It sends a credential only over https://, or to this host.

Examples
https://intake.example.com/v1/logshttps://logs.example.com:8443/ingest?tenant=acme

body string default lines

How records become requests.

lines
Batches many records into a request, one per line.
jsonArray
Batches many records into a request, as one JSON array.
single
Sends each record as a request of its own.

format string default json

What it sends each record as. See Bodies.

json
Writes the record as JSON: NDJSON under body lines, or a JSON array under jsonArray.
text
Writes one field's text, from field. Under body lines it writes each line break in the text as \n; under jsonArray it writes each as a JSON string.
bytes
Writes one field's bytes, __source.bytes unless field names another bytes field: each source record's bytes as read, before pipeline processing. Under body single it sends them as they are; under lines it writes each as a base64 line, and under jsonArray as a base64 string.

field string default _raw for text, __source.bytes for bytes

The field each text or bytes record writes. Only with format text or bytes.

Example
message

headers map default none

Headers it sends on every request, each name to its value. Smeltr sets Content-Type, Content-Encoding, Content-Length, Transfer-Encoding, Host and Cookie itself.

Examples
X-Source = smeltrX-Source = smeltrX-Tenant = acme

credentials map default none

Headers whose values are secret, each name to the credential holding its whole value, such as Bearer <token>.

Examples
Authorization = INTAKE_TOKENX-Api-Key = INTAKE_API_KEY

Advanced

identity identity default none

The connection identity it connects under, for a private CA or a client certificate. Only on an https:// URL.

Examples
intake-clientintake-mtls

compression string default none

How it compresses each request body.

none
Sends it uncompressed.
gzip
Compresses each body and sends it with Content-Encoding: gzip.

inFlight integer default 4

How many requests it sends at once to start with. 1 to 64.

Examples
8116

maxRequestBytes size default 1 MiB

The most one request carries, before compression. A record larger than this still goes as a single record. 4 KiB to 100 MiB.

Examples
4 MiB256 KiB10 MB

bufferBytes size default 64 MiB, or one request if that is larger

How much undelivered output it may hold. 4 MiB to 1 GiB, and at least one request.

Examples
256 MiB64 MiB1 GiB

stallAfterSecs integer default 30

Seconds one batch may take to deliver, every retry included, before the destination reports it stalled. 1 to 120.

Examples
60120

zoneUrls map default none

An address per zone. A worker in a listed zone sends there instead of url.

Examples
us-east-1a = https://intake-a.example.com/v1/logsus-east-1a = https://intake-a.example.com/v1/logsus-east-1b = https://intake-b.example.com/v1/logs

How it works

The destination sends every record to the one URL. It reads no __destination field.

Bodies

Choose a body and a format from these nine pairs. A batch takes lines or jsonArray; one record per request takes single.

bodyformatWhat the service receives
lines (default)json (default)NDJSON: one record per line, as application/x-ndjson.
jsonArrayjsonOne JSON array of records, as application/json.
linestextOne field's text per line, as text/plain. The destination writes a line break inside the text as \n and a carriage return as \r, so each record stays one line.
jsonArraytextOne JSON array of one field's text, a string per record, as application/json.
linesbytesOne field's bytes per line in base64, as text/plain. The field defaults to __source.bytes, each record's original bytes.
jsonArraybytesOne JSON array of one field's bytes, a base64 string per record, as application/json.
singlejsonOne record per request, as application/json.
singletextOne field's text per request, as text/plain.
singlebytesOne field's bytes per request, as application/octet-stream. The field defaults to __source.bytes, each record's original bytes.

The destination writes bytes in a batch as base64, because bytes may hold line breaks and are not JSON text.

Answers

The service answersThe destination
2xxcounts every record the request carried as delivered.
408, 429, 500, 502, 503, 504backs off and sends the request again.
400, 413, 422splits the request in halves and sends each. Halves the service takes land; a record it still refuses on its own, the destination refuses alone. Choose what happens to it →
401, 403stalls, and reports that the service refused its credentials.
anything else, a redirect includedstalls, and reports the status and the start of the answer. It never follows a redirect.

A batch counts as delivered once every request carrying it gets a 2xx. A record resent after a failure can arrive twice. Under single, the destination sends a batch's records one after another. If a request stalls the destination, it sends the whole batch again.

Verify

Send a record with a unique marker through the source, then find it in the service. If the destination stalls, the Status page flags it, and the worker's log names the status the service answered.

Troubleshooting

The service answers 401 or 403
Check that the credential holds the header's whole value, prefix included, such as Bearer <token>.
The service answers 404 or 405
Give the service's intake URL, path included, not its base address.
The service answers a redirect
Give the URL the service redirects to.
The destination refuses to start, naming a credential
The credential's value holds a line break or another control character, often a trailing newline pasted from a file. Store it again without one.
